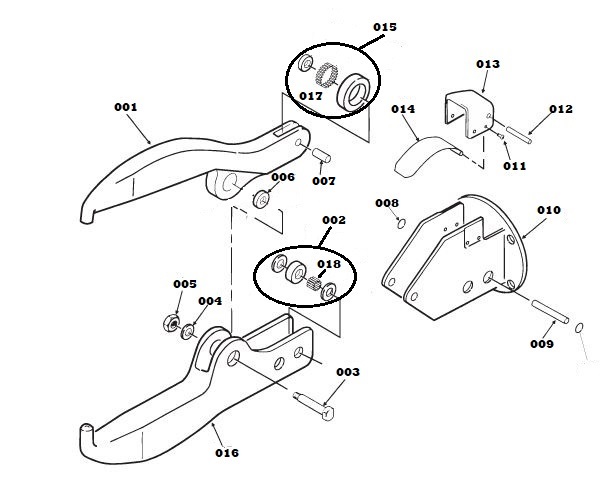

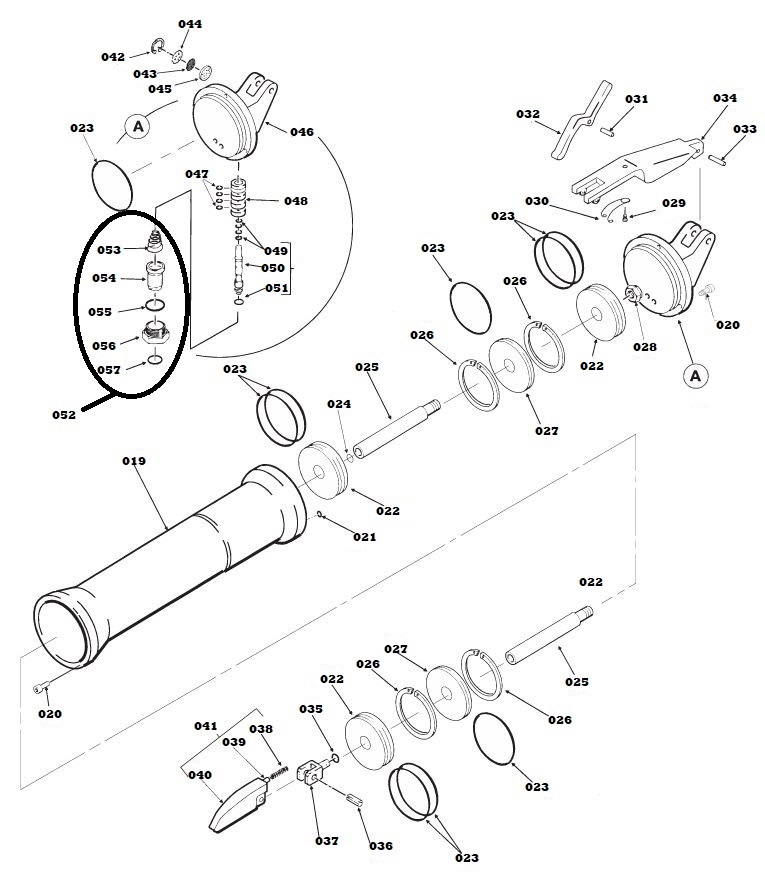

500A Series
500A
|
MODEL
|
RIVET
CAPACITY DIAMETER |
STANDARD
YOKE DIMENSIONS |
MAX FORCE with 90 PSI (6.21 BAR) AIR PRESSURE PSI (KN) |
MOVING JAW |
OVERALL LENGTH | WEIGHT WITH JAW (LBS) |
||||
|
ALUM
|
STEEL
|
REACH
|
CLOSED HEIGHT
|
MAX
TRAVEL |
STROKE
MAX POWER |
|||||
| 500A-570 | 1/4 (6.3) |
3/16 (4.8) |
3 (76.2) |
7/8 (22.2) |
10,001 (44.48) |
1 3/16 (30.16) |
5/64 (1.95) |
24" (501.6) |
11 1/2 (5.2) |
|
| 500A-572 | 3/16 (4.8) |
5/32 (4.0) |
5 (127) |
7/8 (22.2) |
6,900 (30.69) |
1 3/8 (35) |
1/8 (3.15) |
25" (635) |
12 (5.5) |
|
| 500A-574 | 5/32 (4.0) |
1/8 (3.1) |
7 (178) |
7/8 (22.2) |
4,500 (20.02) |
1 13/16 (46) |
5/32 (3.95) |
27" (603.2) |
12 1/2 (5.7) |
|
*All pressures are load cell tested not calculated.
